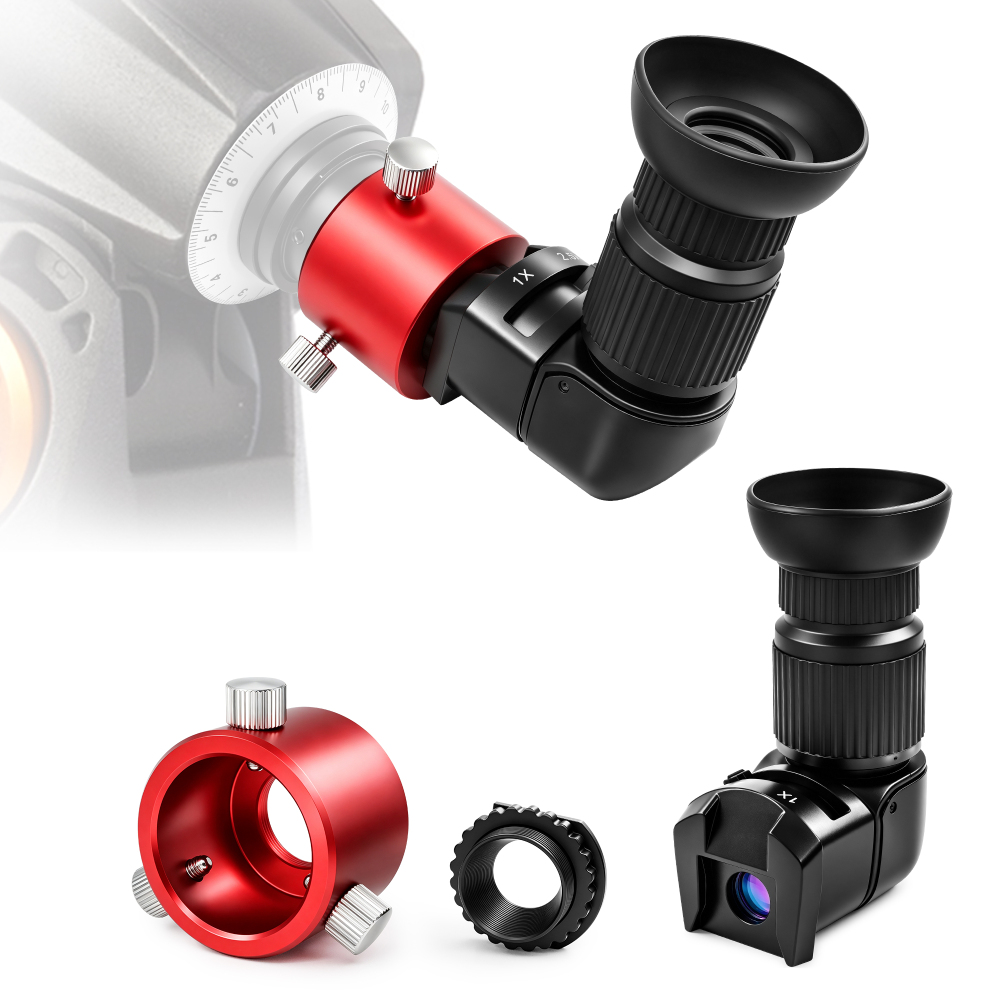

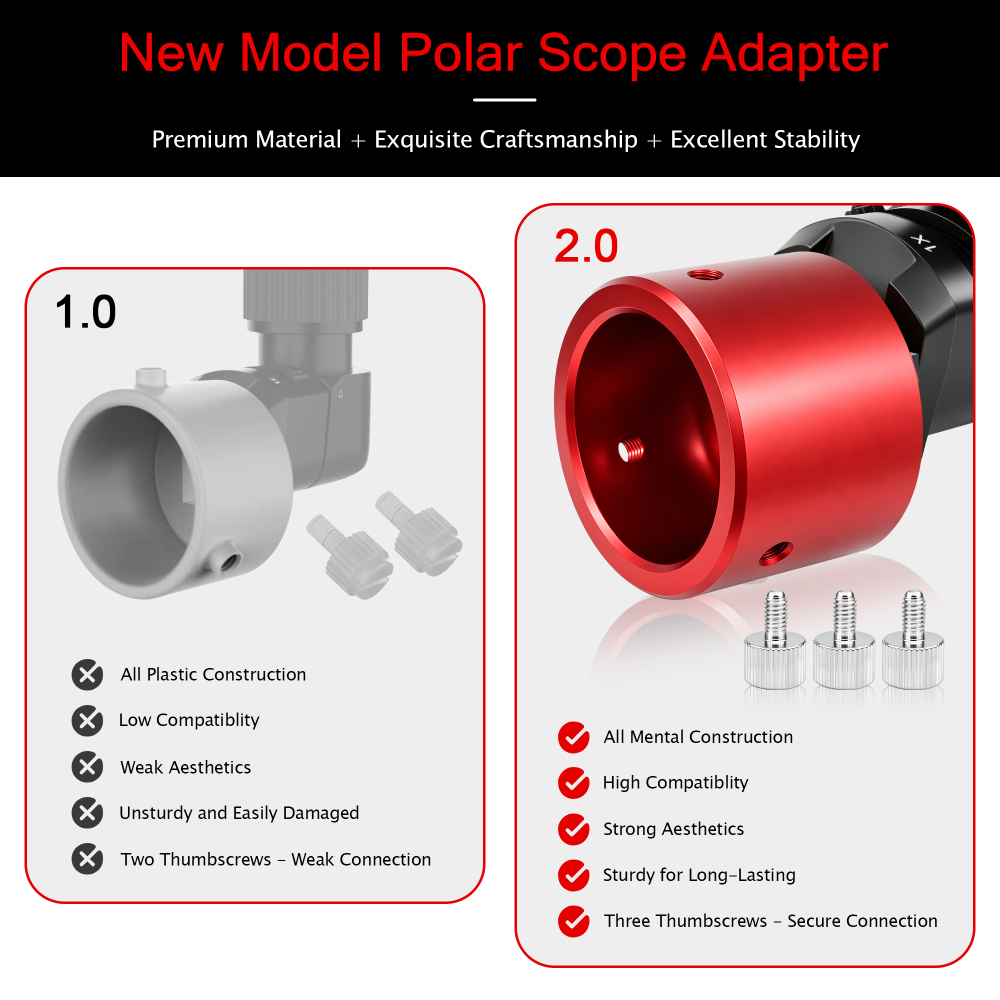

 Polar Scope Metal Adapter |
 Right Angle Viewfinder |
 Polar Alignment Scope for EQ-5 |
|---|---|---|
|

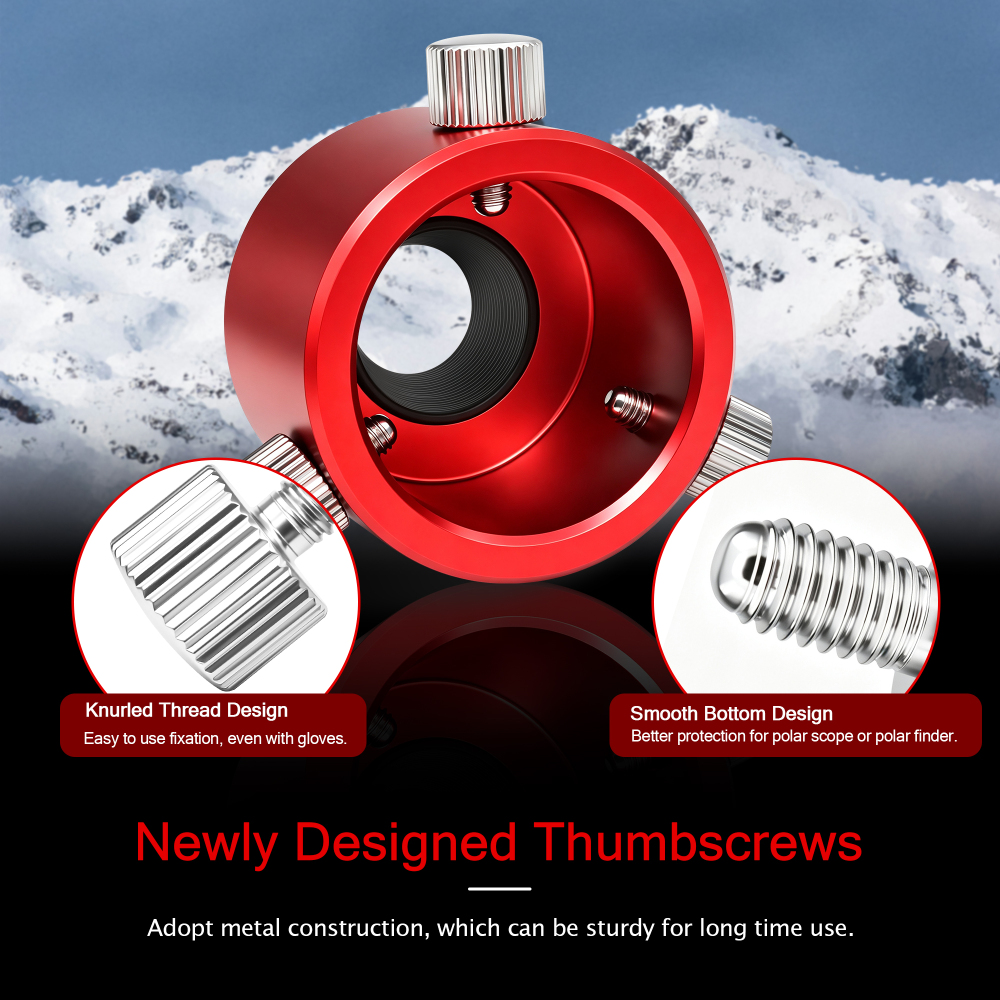

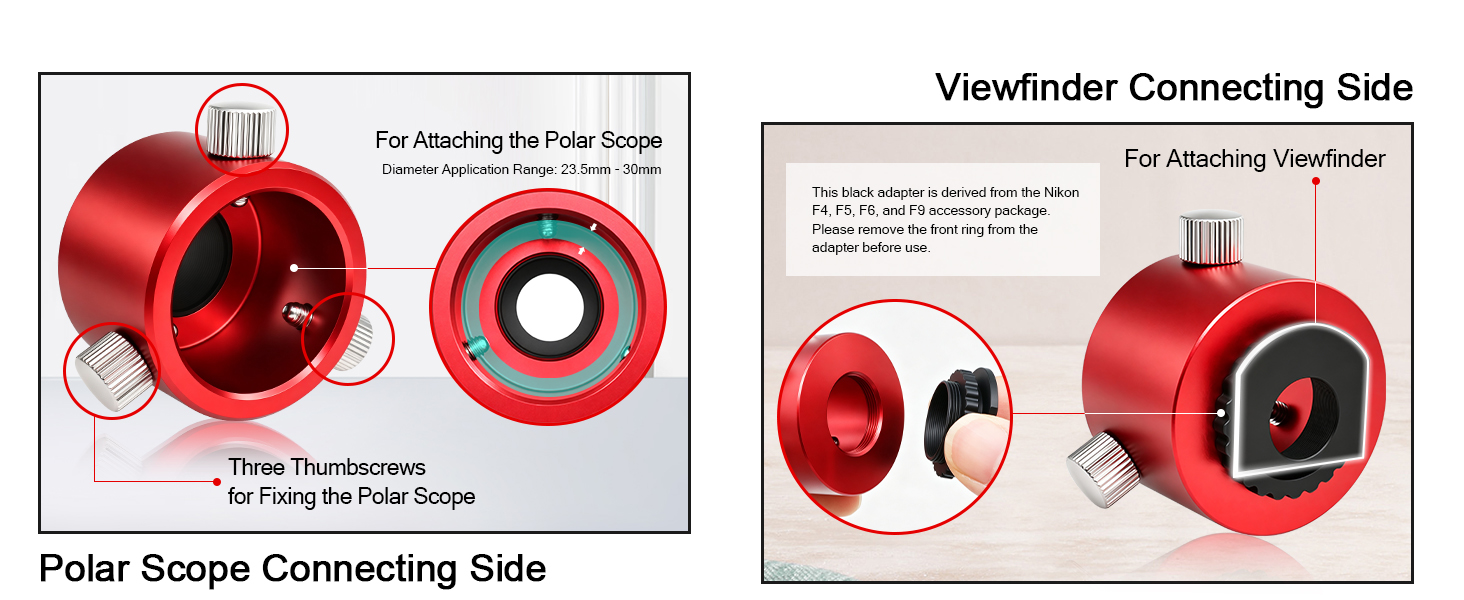

Function Point 1 Equipped with three thumbscrews make easier to secure polar scope. |
Function Point 1 View at right angles or arbitrarily rotated any 360 degrees. |
Function Point 1 Multi-coated optics provide maximum detail and definition. |
|

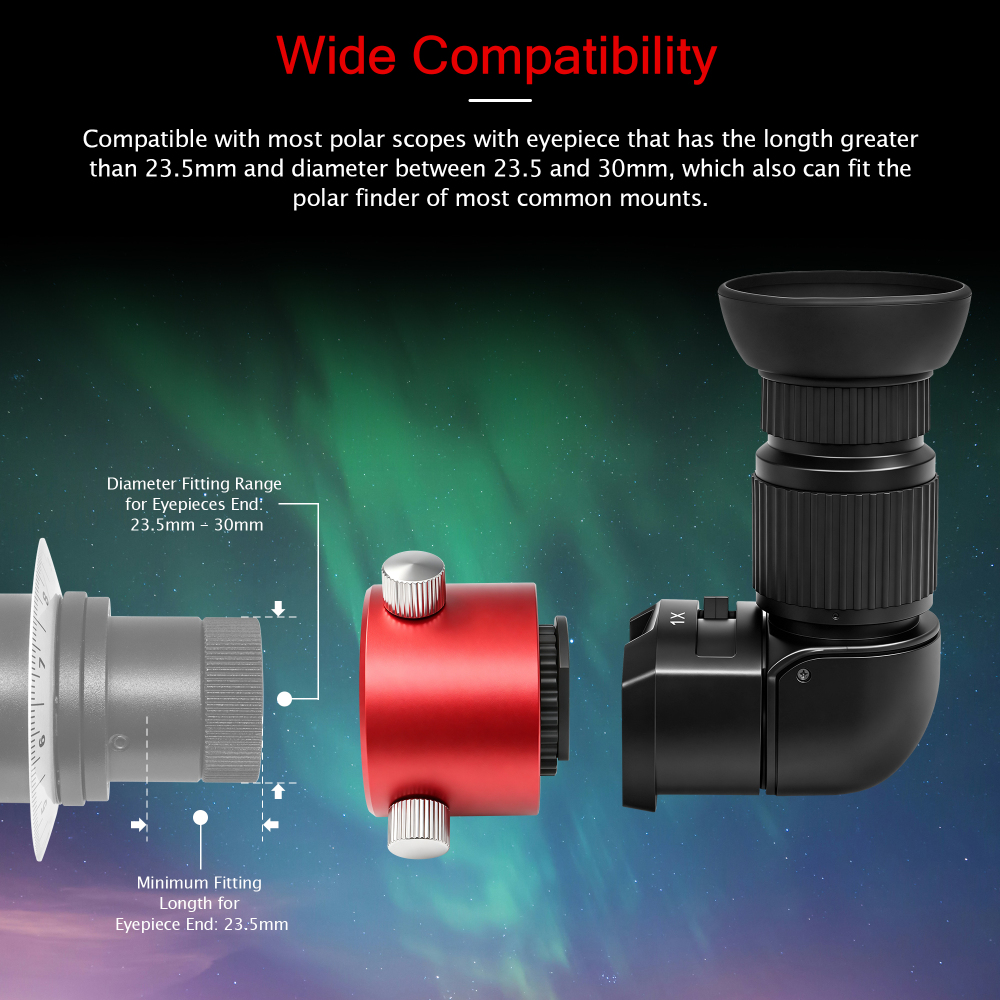

Function Point 2 Fit onto the polar finder of most common mounts for making polar alignment. |
Function Point 2 Manually Adjustable Magnification Between 1X and 2.5X. |
Function Point 2 A 12-hour scale gives you a second straightforward way to align the mount. |
|
Function Point 3 Achieve to work extremely well with viewfinder make alighment comfortable. |
Function Point 3 Made of 9 elements in 5 groups with high quality roof prism. |
Function Point 3 New reticle has a clock like engraving for aligning easier and more accurate. |
 |
 |
 |
 |

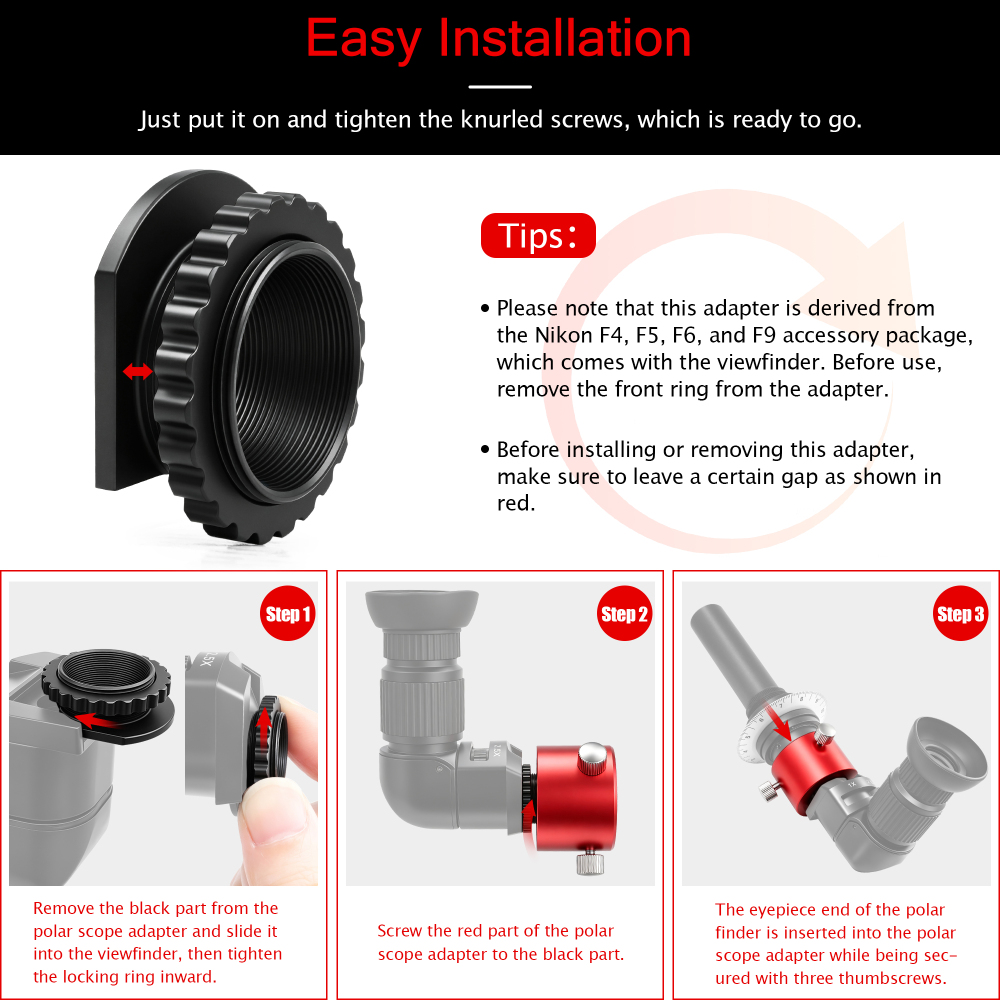

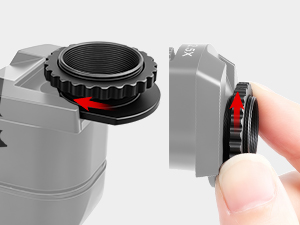

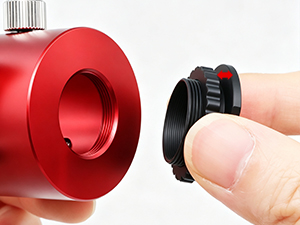

Step 1:Remove the black part from the polar scope adapter and leave a certain gap by rotating the locking ring outwards. |
Step 2:Slide the black part to the viewfinder, then tighten the locking ring inward. |

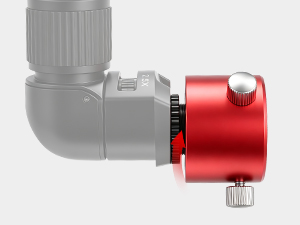

Step 3:Screw the red part of the polar scope adapter to the black part. |

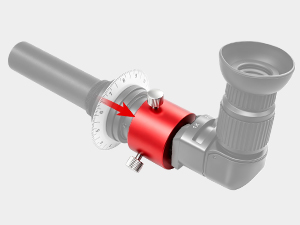

Step 4:The eyepiece end of the polar finder is inserted into the polar scope adapter while being secured with three thumbscrews. |
 |
 |
 |
Multi-Coated Achromatic DesignMade of 9 elements in 5 groups with high quality roof prism for geting brighter views with better contrast. |

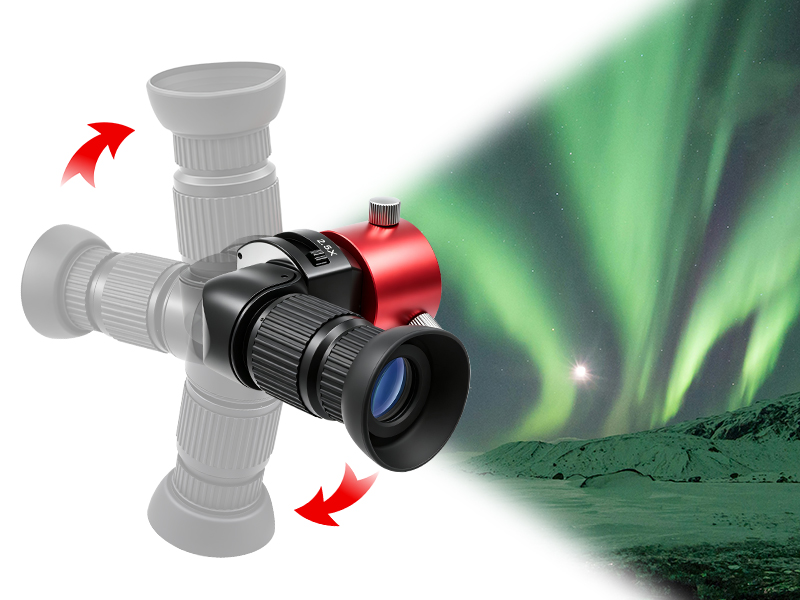

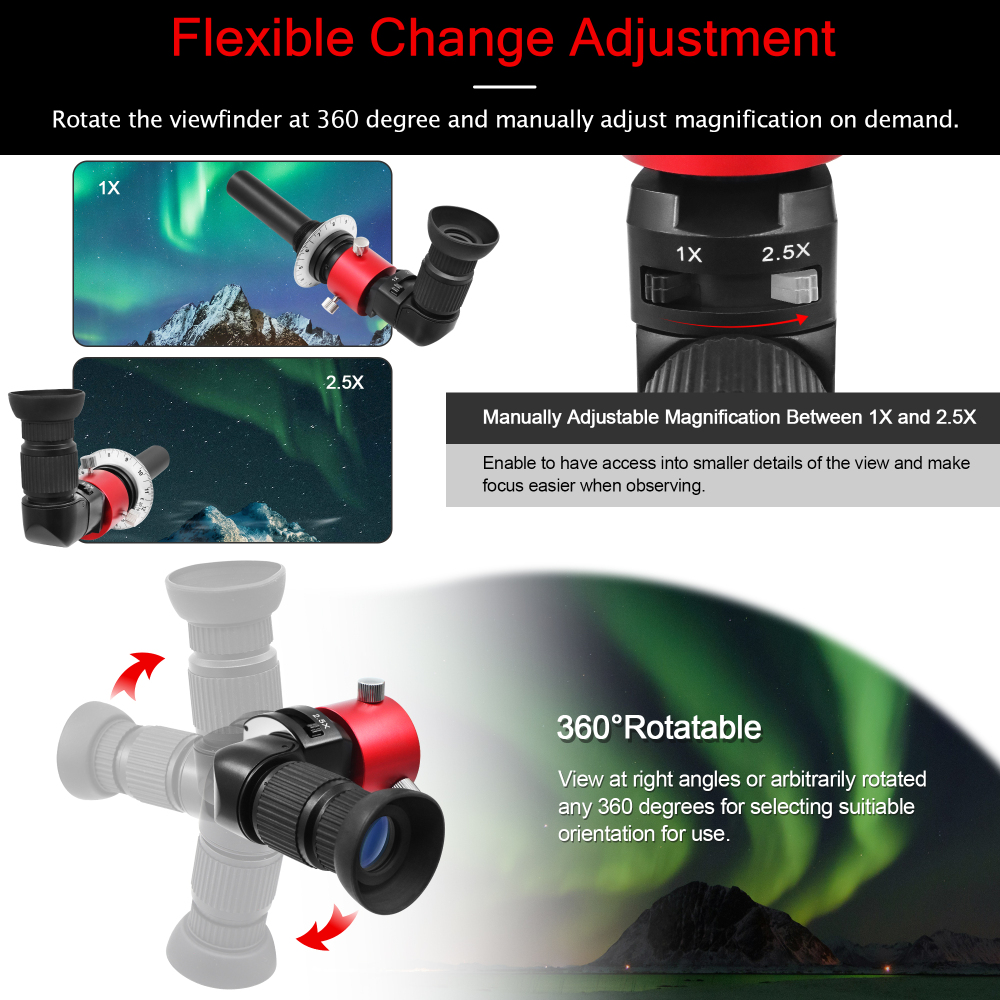

360°RotatableView at right angles or arbitrarily rotated any 360 degrees for selecting suitiable orientation for use. |

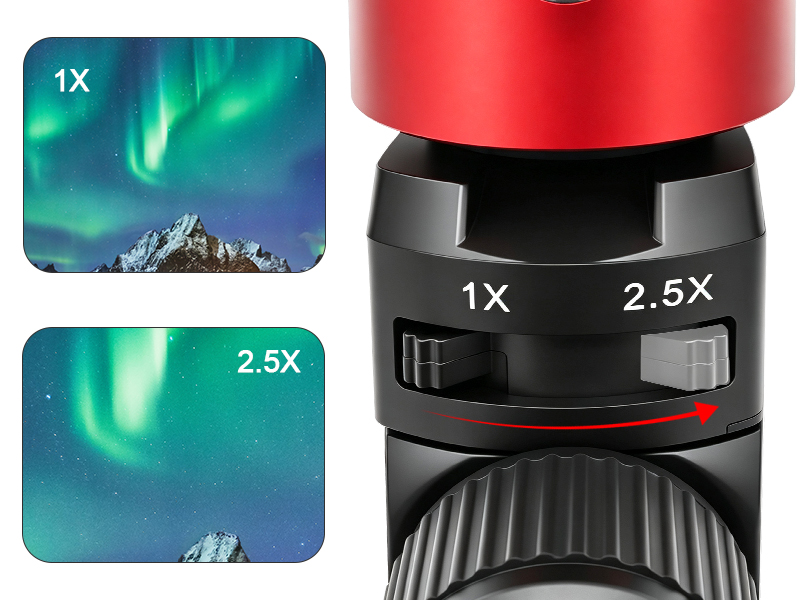

Magnification AdjustmentManually Adjustable Magnification Between 1X and 2.5X, which enables to have access into smaller details of the view and make focus easier when observing. |
