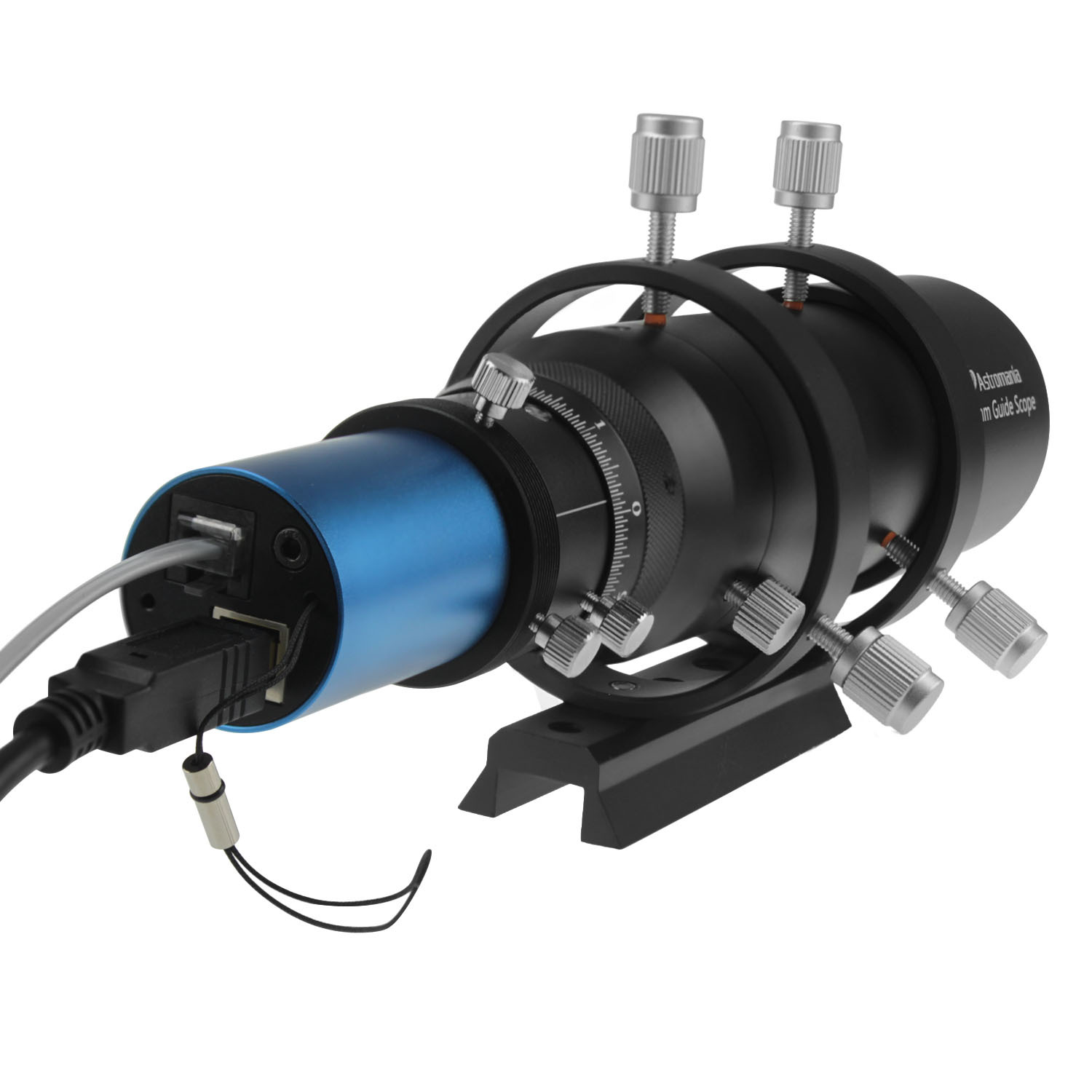

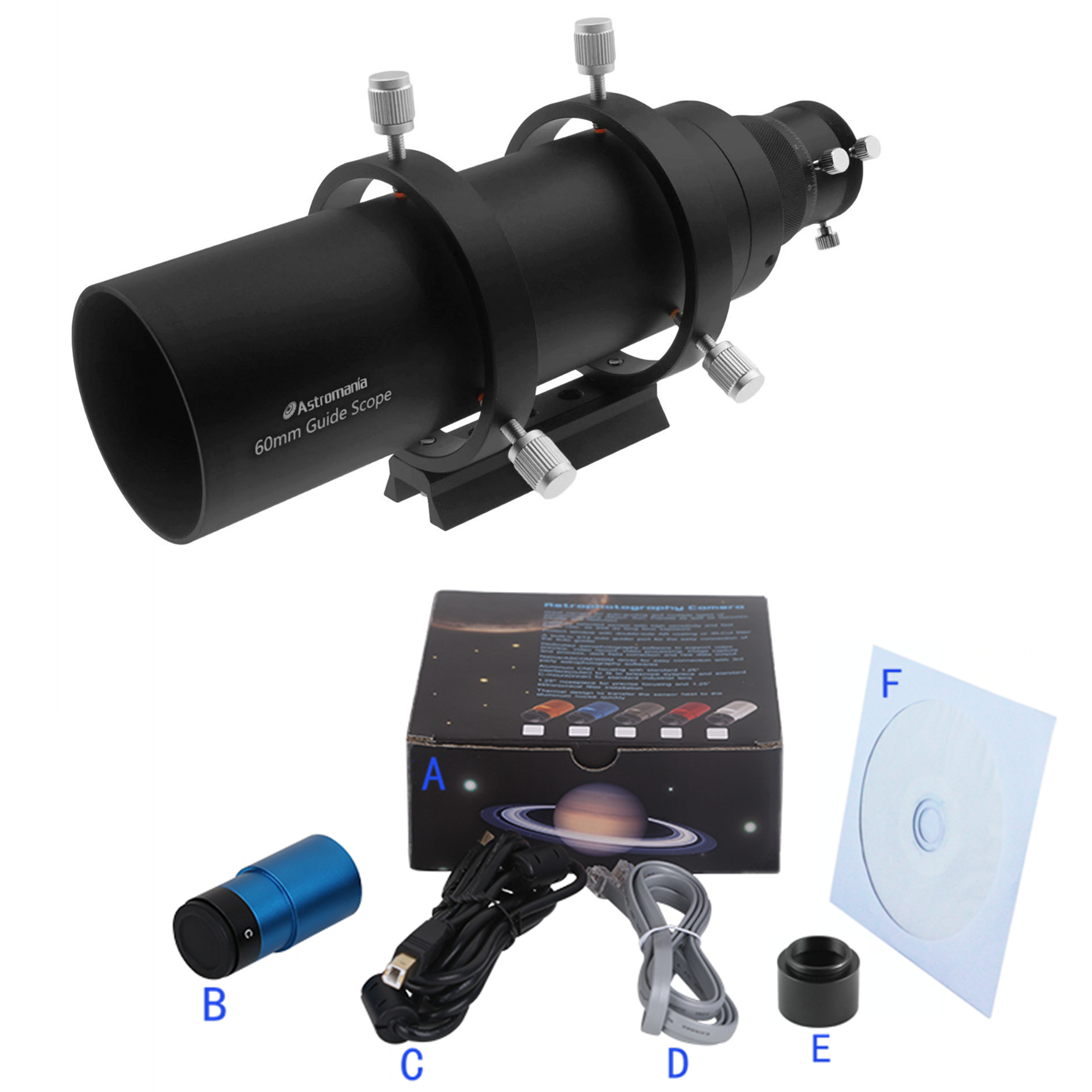

This set consists of the Astromania 60mm Deluxe Finder & Guidescope Kit and CMOS Camera
Planetary imaging and guiding camera from Astromania - the key to successful planetary photos
The Astromania SGCMOS Series Telescope CMOS Camera - Multicolour Imaging is a highly sensitive planetary camera which can turn you into a successful planetary photographer. The heart of this camera is a sensitive and low-noise CMOS chip. An optimal launching pad for sharp and high-resolution planetary imaging. But this camera can also be used to guide via a guide star.
|
|
The advantages in a nutshell:
♦ Highly sensitive and low-noise CMOS chip
♦ Large field of view and high 1.2 MP resolution
♦ Perfect tracking for astronomy photos - ST 4 autoguider port
♦ Software and drivers on CD-Rom
♦ C-mount connection
♦ Up to 30 frames per second
♦ Mini guide scope for rapidly locating astronomical objects and guide stars
♦ Designed for both visual and photographic use
♦ Use any 1.25 inch eyepiece from your collection
♦ Worm-gear focuser for rapid focusing. - prevents the rotation of camera and eyepiece.
|
|
|
|
|
|
Large field of view and high resolution
With a resolution of 1280x960 pixels, you can plot a course directly to the planets in our solar system. The wide field of view is ideal for sharp and wide-scale images of the lunar surface. Unlike normal entry-level cameras, this camera offers a much larger chip area.
|

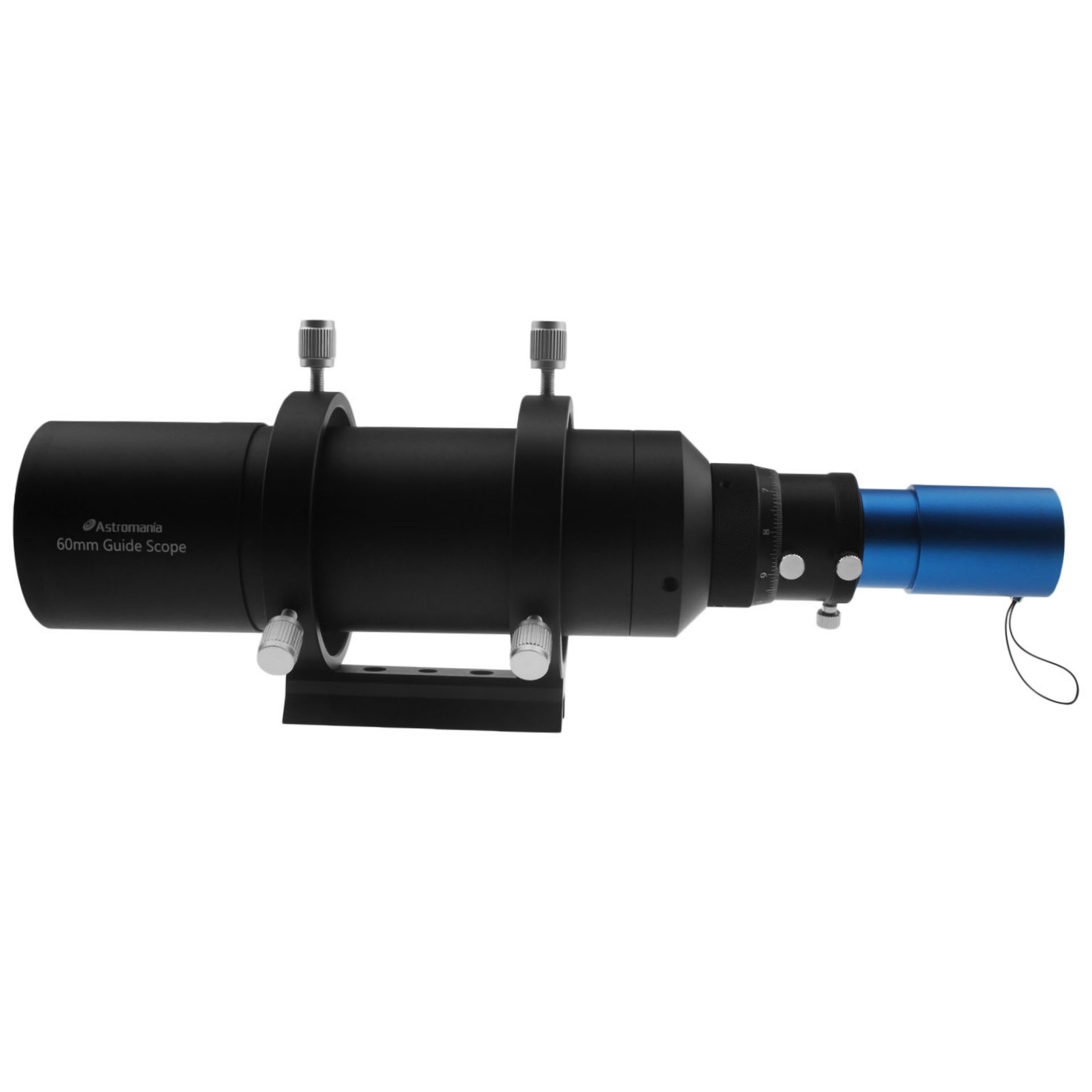

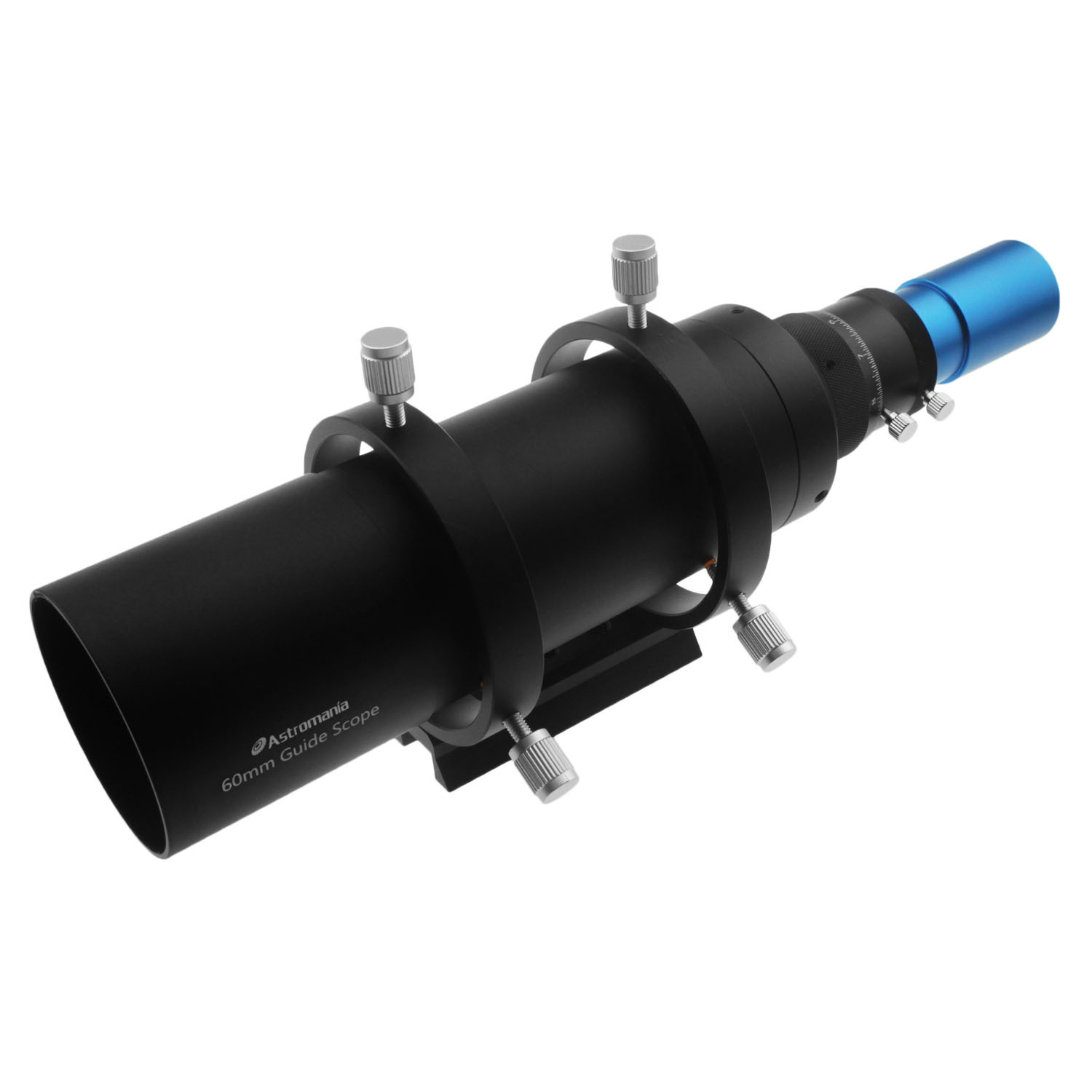

What is special about our new Astromania guide scope?
It has a built-in worm-gear focuser with 10mm displacement, allowing very precise focus adjustment. The mechanism has a fixed orientation - so there is no rotation of mounted cameras or eyepieces - or also the field of view with your guide star - when focusing.
|
The robust metal housing is made of black, anodized aluminium
It not only looks solid, but is very sturdy. A milled and knurled focusing ring allows straightforward and precise fine focusing. It comes with matching tube clamps and a Synta-style mounting plate to make assembly and disassembly as simple as possible.
|
|
Guiding with the Mini Guide Scope - makes astrophotography easier and needs less equipment

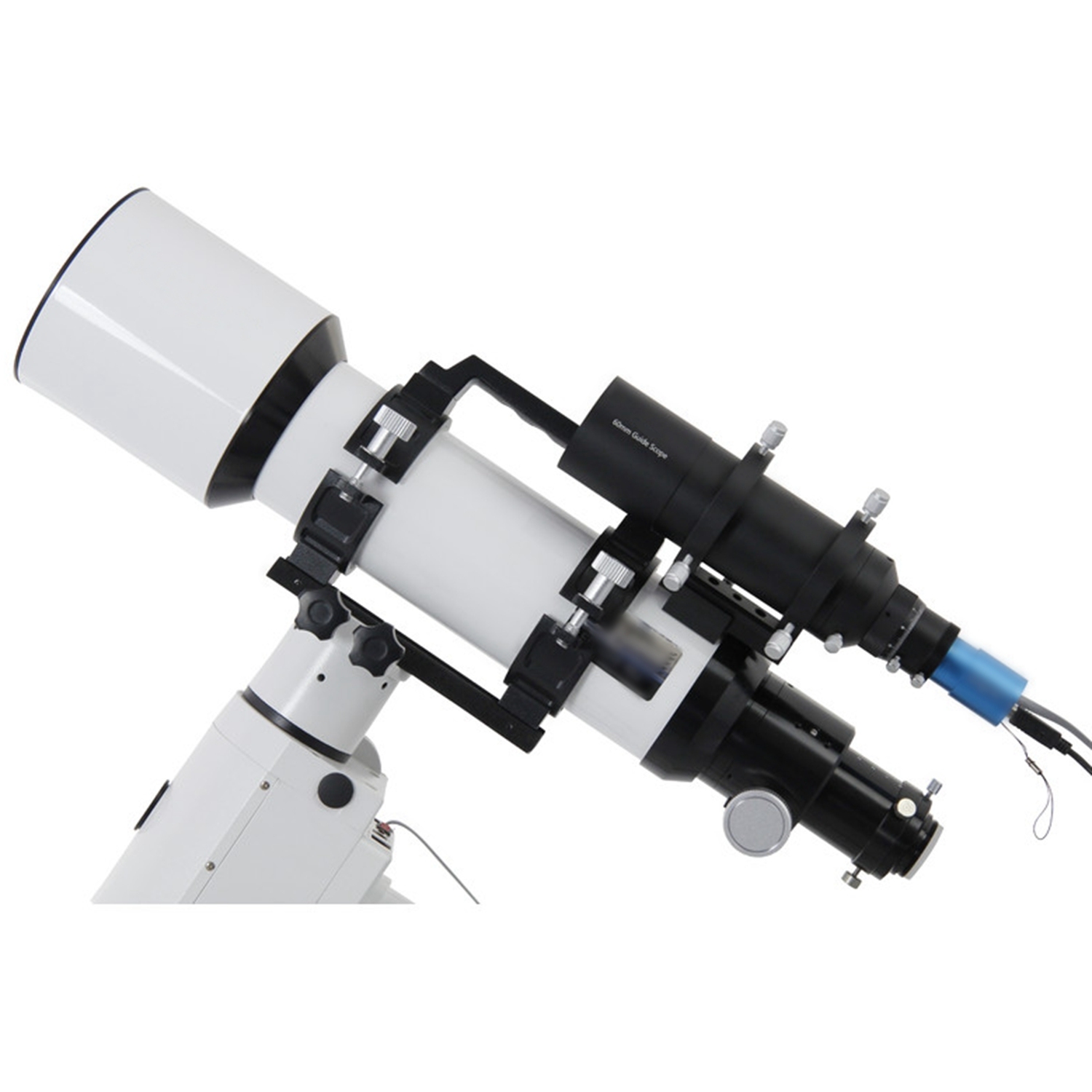

This small guide scope takes does the job of a 'classic' guide scope - but it is lighter and much easier to use! Previously, long and unwieldy guide scopes were used to locate a guide star. But this is no longer necessary! The sensitivity of modern astronomy cameras makes this possible. You simply attach the mini guide scope onto your telescope like a finder.
Or you can use it as a convenient, large finder scope and spend less time locating objects when visually observing.
|
|
Astromania Camera Easy Autoguiding Set60
♦ Software Environment:
Operating System:
♦ M icrosoft Windows XP / Vista / 7 / 8 (32 & 64 bit) (Please con tact us for the signed driver for Win10)
♦ Linux/Mac OSX
PC Requirements:
♦ CPU: Equal to Intel Core2 2.8GHz or Highe
♦ Memory:2GB or More
♦ USB Port:USB2.0 High-speed Port
♦ Display:17” or Larger
♦ CD-ROM
♦ Sensor & Size(mm):1.2M/AR0130(C); 1/3“(4.8x3.6)
1. Pixel(μm):3.75 x3.75
2. G Responsivity:5.5v/lux-sec; 85.3dB; 44dB
3. FPS/Resolution:28@1280x960; 30@640x480
4. Binning:1x1, 2x2
5. Exposure(ms):0.4ms~2000ms
♦ Other Specification for SGCMOS Cameras:
1. Spectral Range: 380-650nm (with IR-cut Filter), 350-1050nm(with double side AR Coating protect window)
2. White Balance: ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
3. Color Technique: Ultra-FineTM Color Engine/NA for Color Sensor
4. Capture/Control API: Native C/C++, C#, DirectShow, Twain
5. Recording System: Still Picture and Movie
6. Cooling System*: Natural with High Performance Cooling Structure
7. Guiding Port: ST4-port
♦ Operating Environment:
1. Operating Temperature(in Centidegree): -10~ 50
2. Storage Temperature(in Centidegree): -20~ 60
3. Operating Humidity: 30~80%RH
4. Storage Humidity: 10~60%RH
5. Power Supply: DC 5V over PC USB Port
- 【60mm Guide Scope】(1)Mini guide scope for rapidly locating astronomical objects and guide stars. (2)Designed for both visual and photographic use. (3)Use any 1.25 inch eyepiece from your collection. (4)helical focuser for rapid focusing - prevents the rotation of camera and eyepiece
- 【CMOS Sensor】Planetary imaging and guiding camera - The CMOS Camera is a highly sensitive planetary camera. The heart of this camera is a sensitive and low-noise CMOS chip. An optimal launching pad for sharp and high-resolution planetary imaging. But this camera can also be used to guide via a guide star.
- 【Large Field of View and High Resolution】With a resolution of 1280x960 pixels, you can plot a course directly to the planets in our solar system. The wide field of view is ideal for sharp and wide-scale images of the lunar surface. Unlike normal entry-level cameras, this camera offers a much larger chip area.
- 【Easy to Use】Guiding with the Mini Guide Scope - makes astrophotography easier and needs less equipment: This small guide scope takes does the job of a 'classic' guide scope - but it is lighter and much easier to use.
- 【High Quality and Durable】The housing is made of black, anodized aluminium. It comes with two knurled ring and a dovetail mounting bar, which can installs on astrophotography telescope quickly and easily.
